Abstract
We present a comprehensive study investigating the alignment between subjective human perception and objective computational metrics in super-resolution models. Through psychophysical experiments and systematic evaluation of state-of-the-art super-resolution models including ResShift, BSRGAN, Real-ESRGAN, and SwinIR, we bridge the gap between computational metrics and human visual quality assessment. Our findings reveal significant discrepancies between traditional metrics like PSNR/SSIM and human preference, with ResShift demonstrating superior performance across both objective metrics and subjective evaluations. This research provides critical insights for developing more perceptually-aligned evaluation frameworks for super-resolution systems.
Experimental Setup

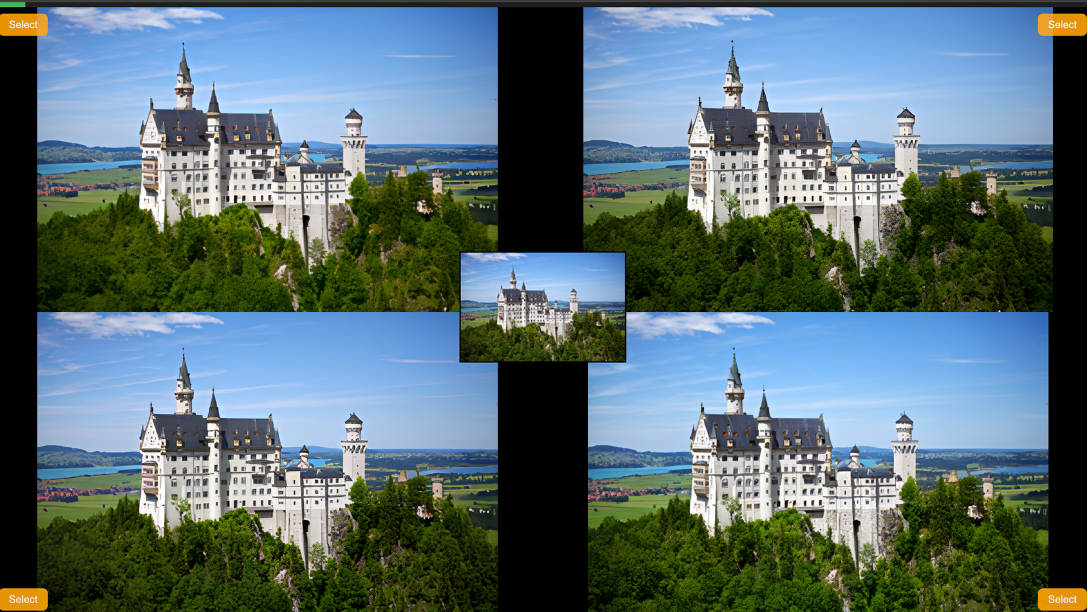

Experiment 1: Quick Evaluation Interface
- Total Images: 30
- Estimated Time: 15 minutes
- Low-Resolution Image: 255×169 pixels (center)
- High-Resolution Images: 4 images, 1020×676 pixels each
- Task: Choose best HR image from randomized comparisons

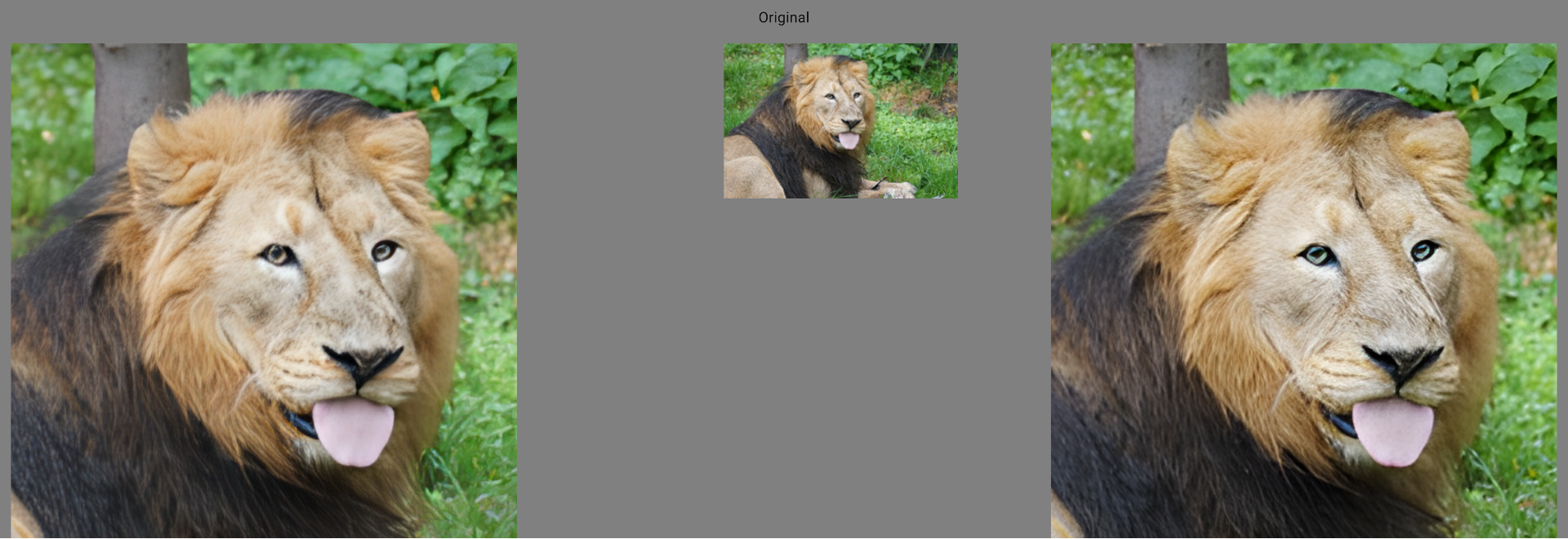

Experiment 2: Pairwise Comparison
- Method: Pairwise comparisons
- Images: 10 images, 60 pairs per person
- Display: BenQ calibrated monitor, sRGB, D65, 80 cd/m²
- Estimated Time: 15 minutes
- Task: Subjective quality assessment

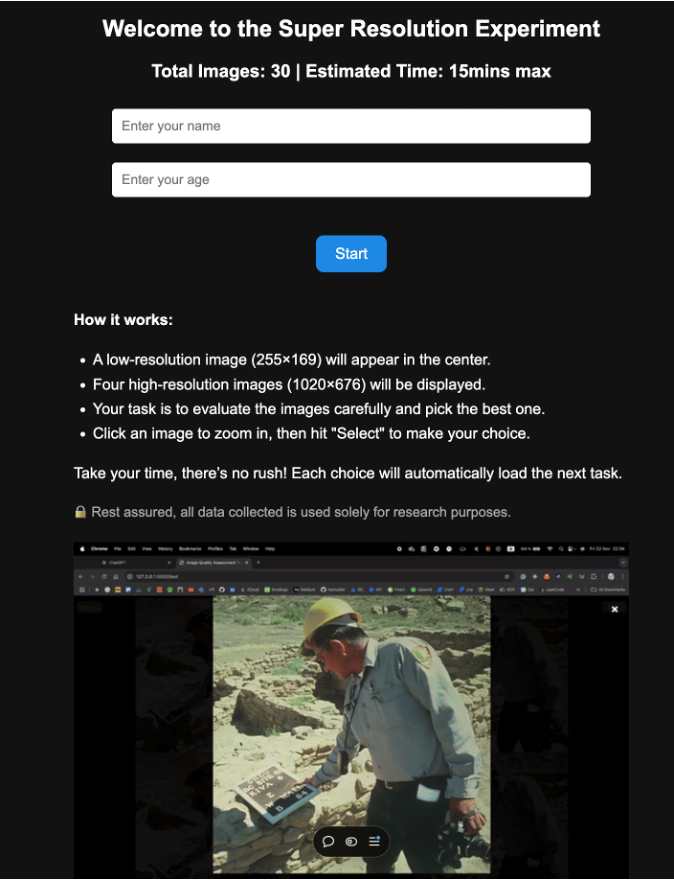

Main Interface: User interface for the psychophysical experiments
Participant Demographics & Methodology

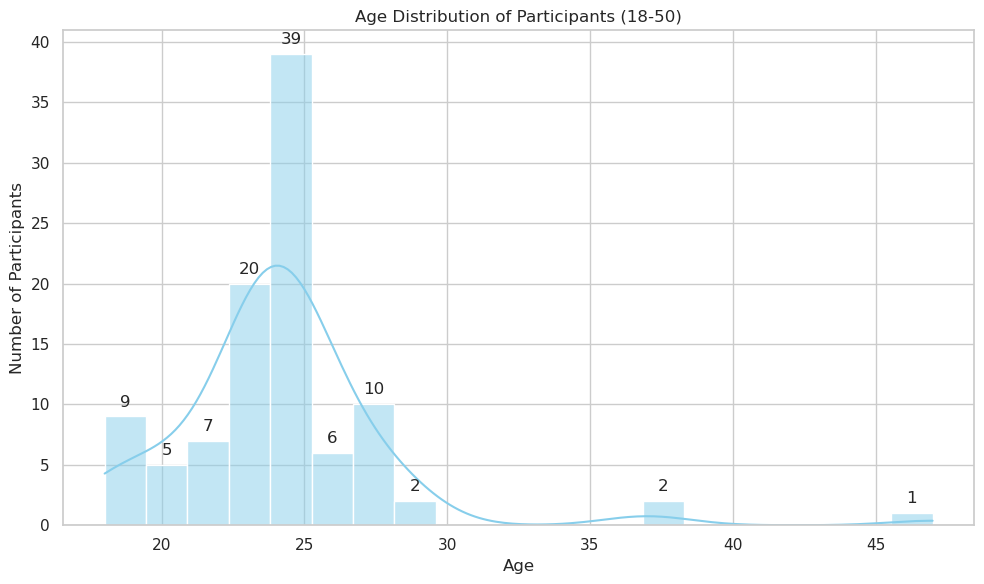

Age Distribution: Demographics of study participants across both experiments

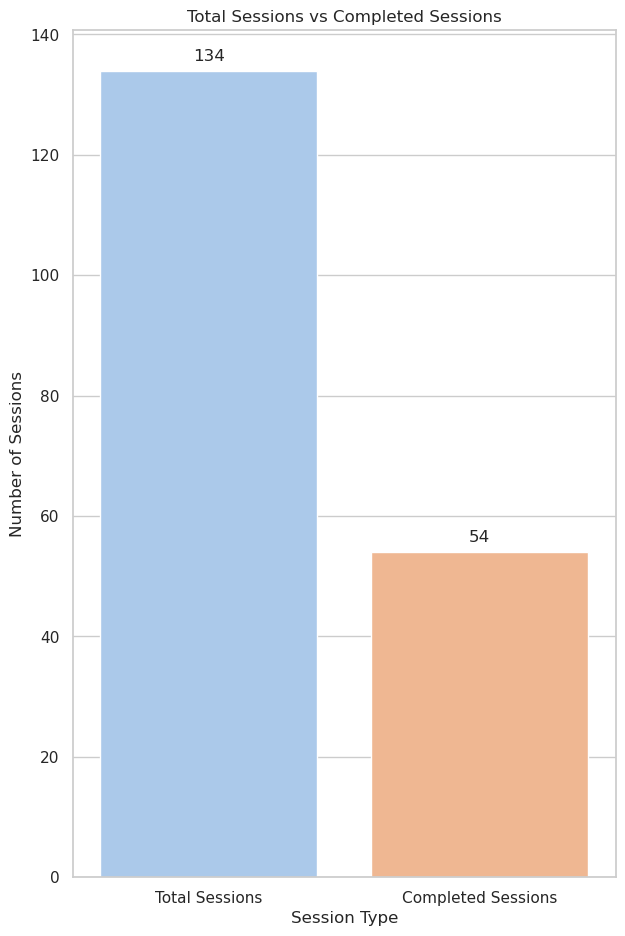

Session Statistics: Completion rates showing high participant engagement
Objective Metrics Analysis
Key Finding: ResShift consistently outperformed other models across most objective metrics, achieving the highest PSNR (25.01) and best LPIPS (0.231) scores. However, BSRGAN's competitive PSNR/SSIM scores contrasted sharply with poor subjective performance.

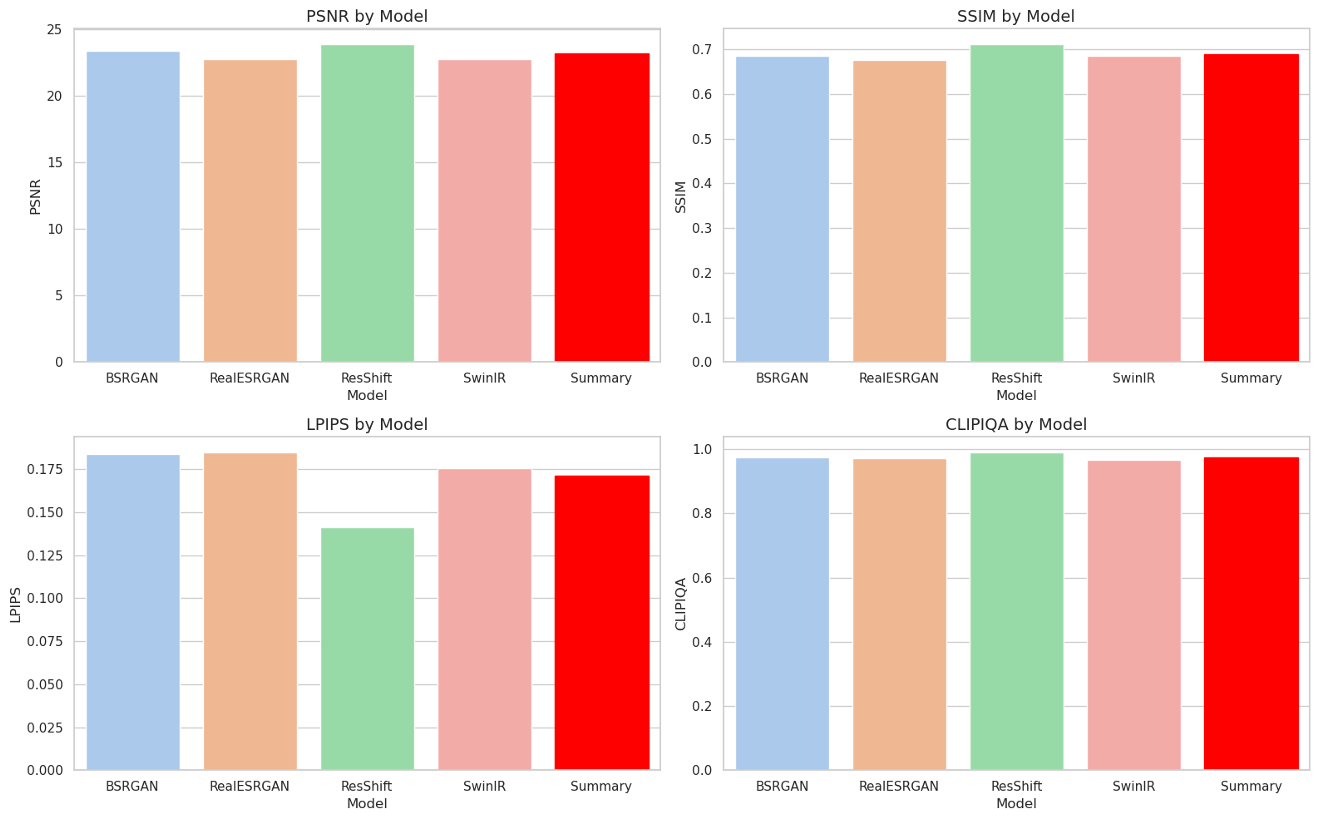

Comprehensive Metric Analysis: Comparison of PSNR, SSIM, LPIPS, and CLIPIQA across all models

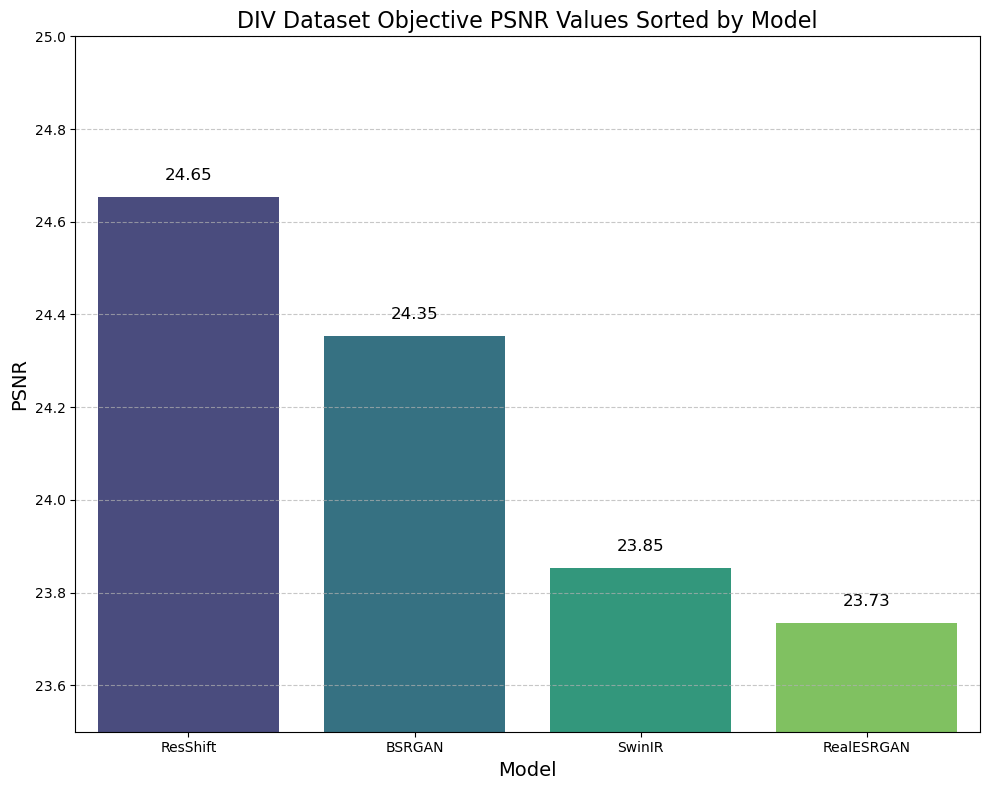

PSNR Results on DIV2K Dataset: Our experimental validation
.png)

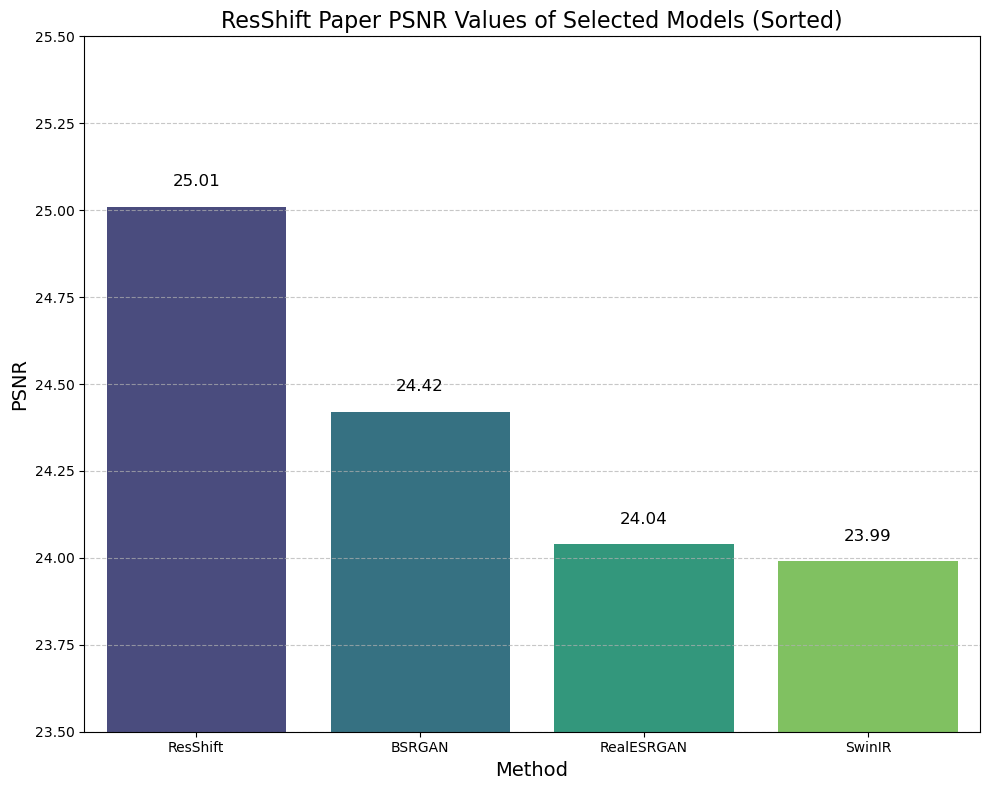

Literature Comparison: Results from original model papers
Subjective Evaluation Results
Experiment 1 (54 observers): ResShift was chosen 624 times, significantly outperforming SwinIR (377), RealESRGAN (351), and BSRGAN (268). Participants cited sharpness, absence of artifacts, and color fidelity as key factors.
Experiment 2 (15 observers, 900 comparisons): Controlled environment validation confirmed ResShift's dominance with 309 selections, followed by RealESRGAN (228), SwinIR (220), and BSRGAN (143).

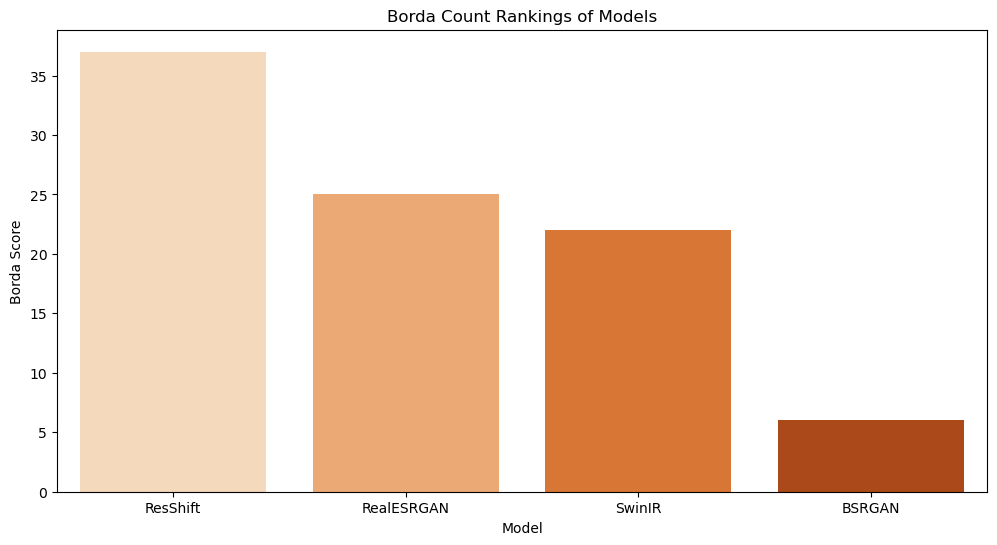

Borda Count Rankings: Statistical ranking confirming ResShift's consistent superiority

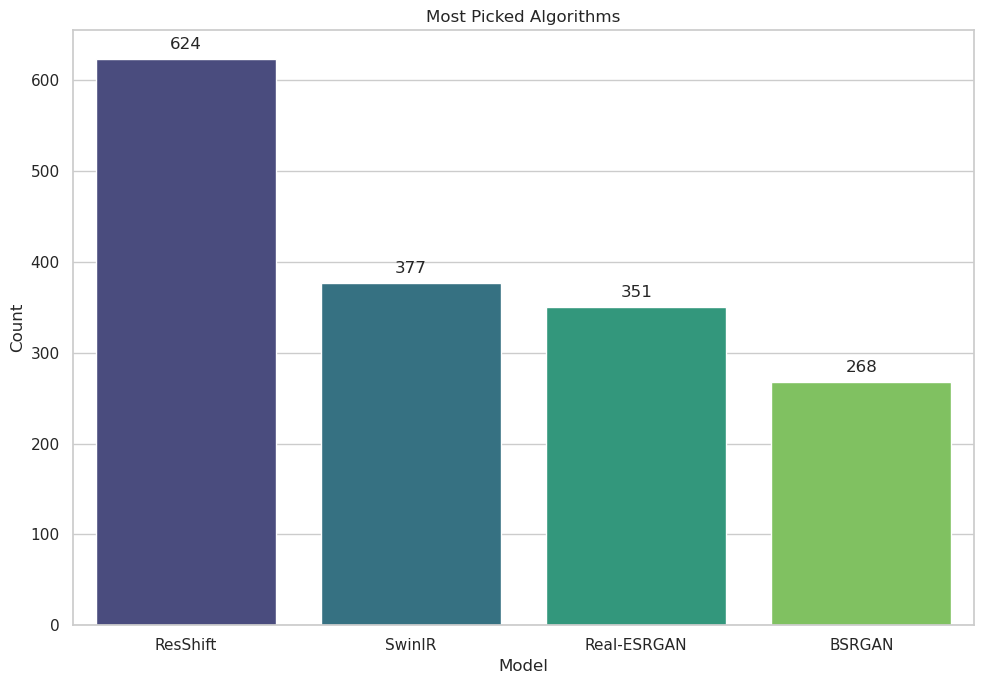

Experiment 1 Results: Clear preference hierarchy across 54 participants

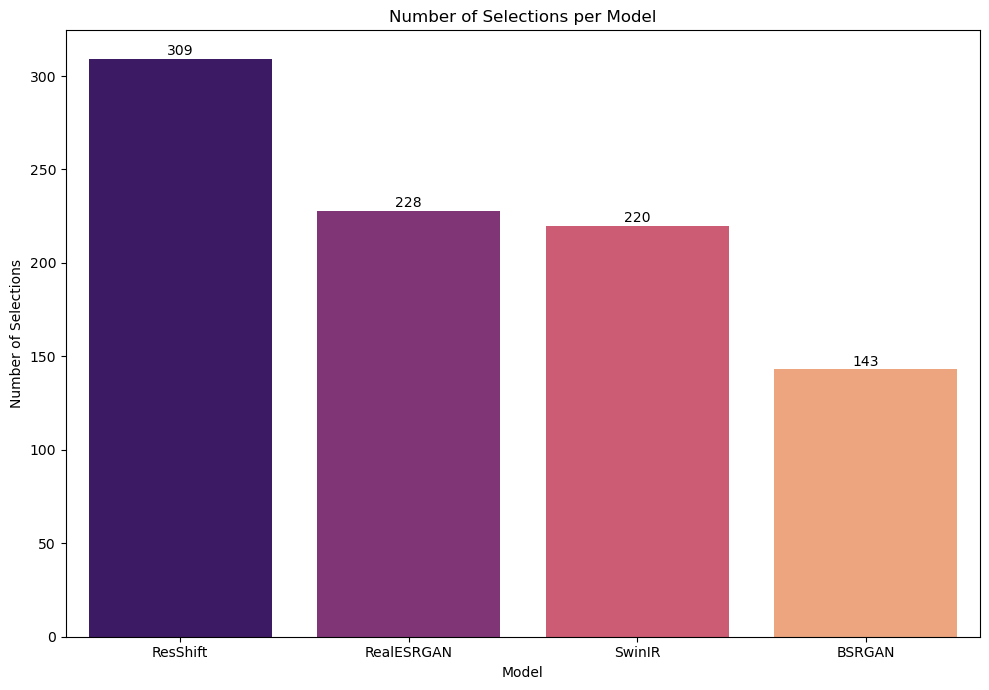

Experiment 2 Results: Controlled validation with 900 pairwise comparisons

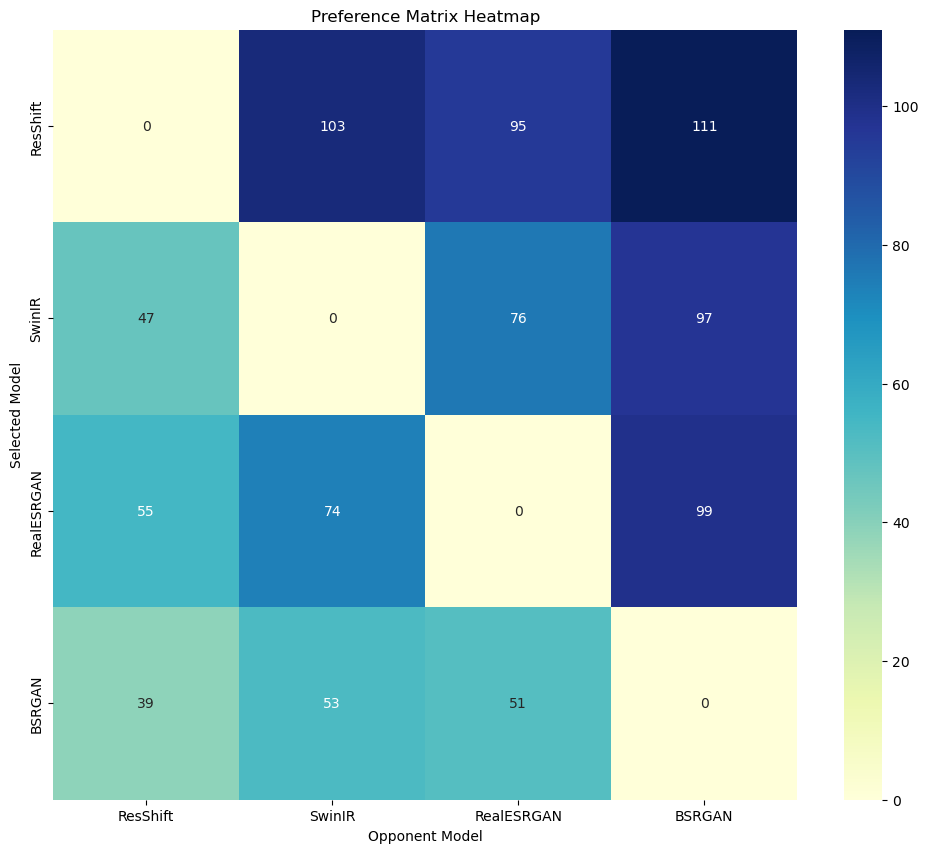

Preference Heatmap: Statistical significance confirmed by Chi-Square test (χ² = 61.40, p < 0.001)
User Behavior & Demographic Analysis

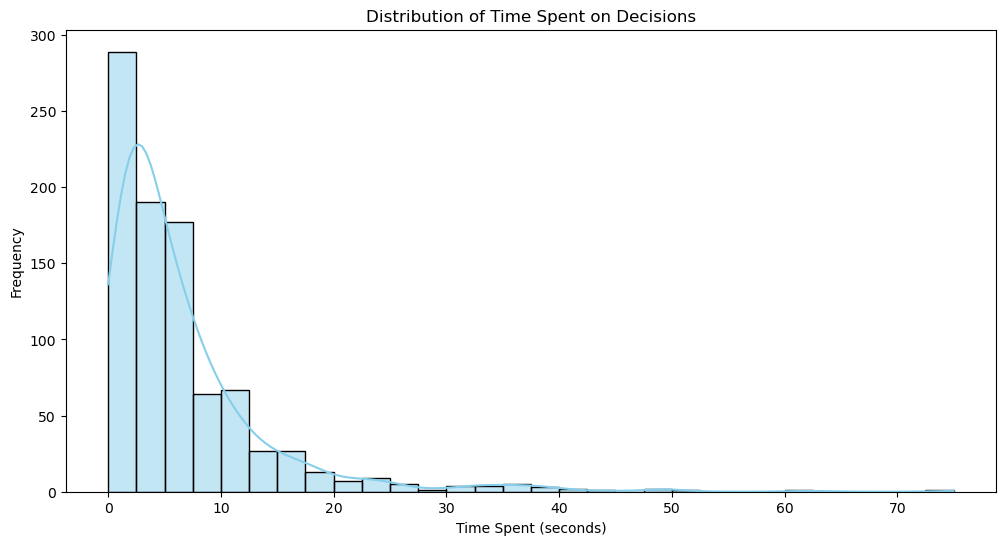

Decision Time Distribution

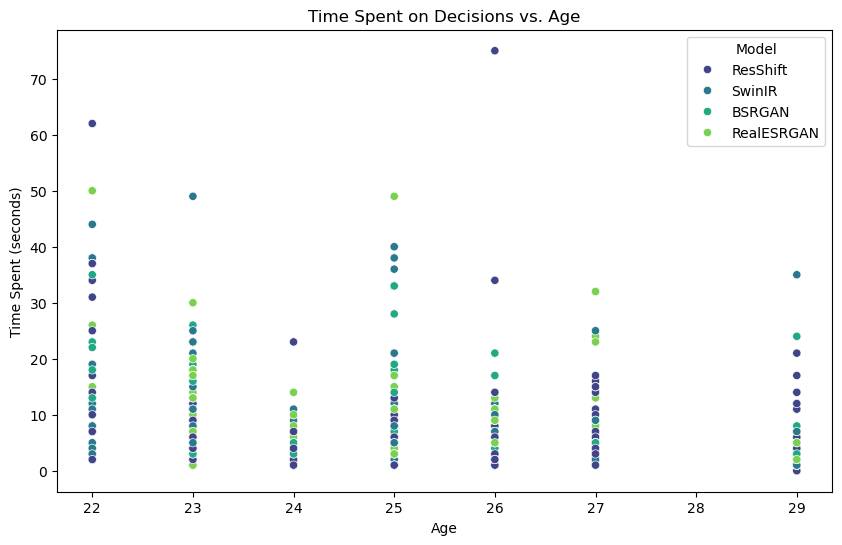

Age Impact on Decision Time

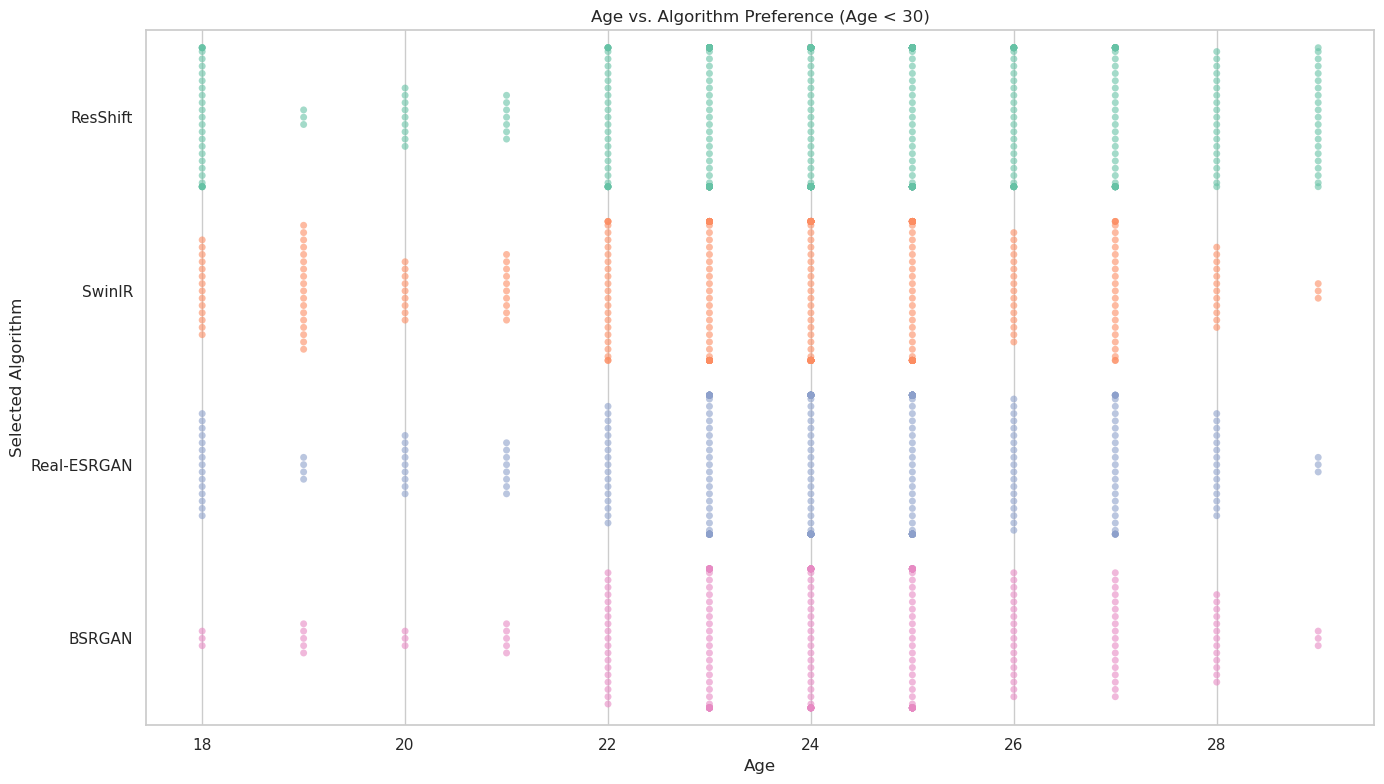

Algorithm Preference by Age Group

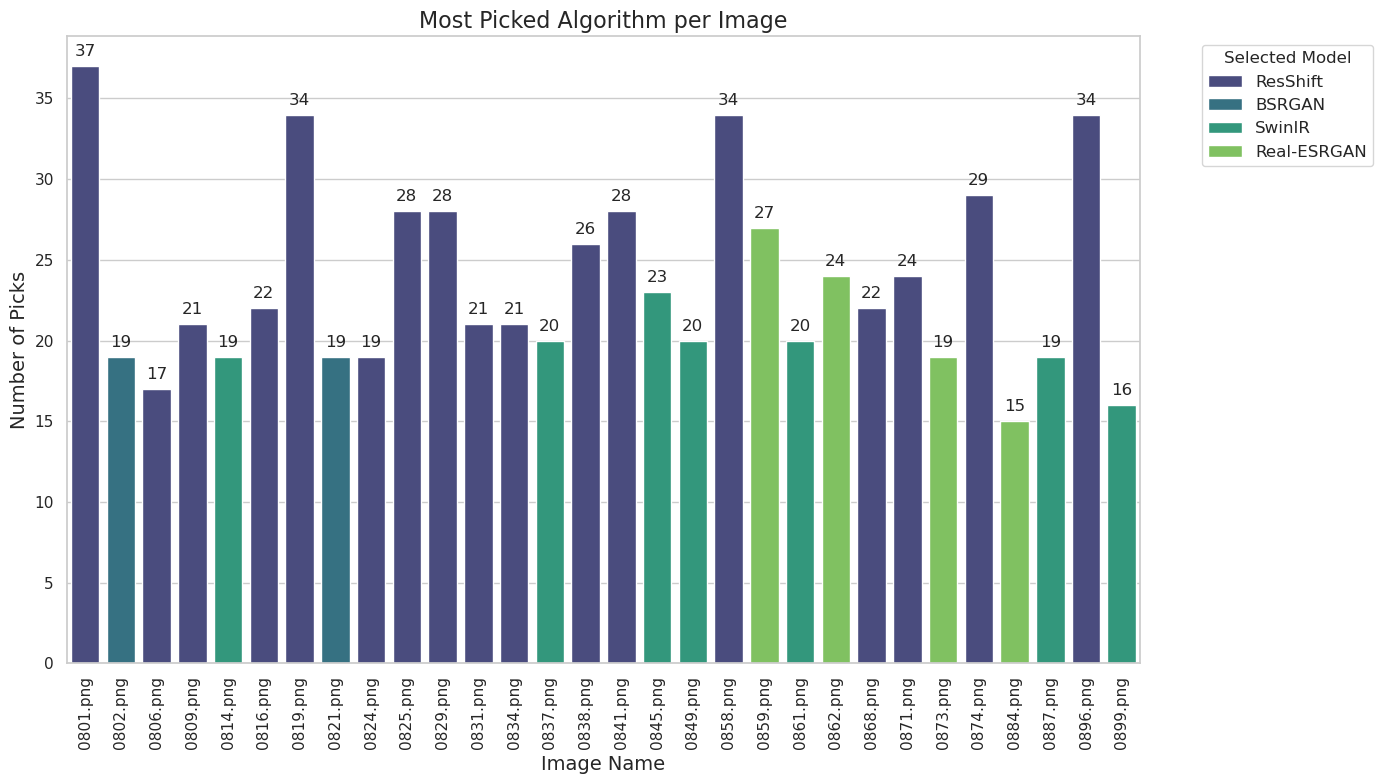

Content-Dependent Preferences
Qualitative Insights

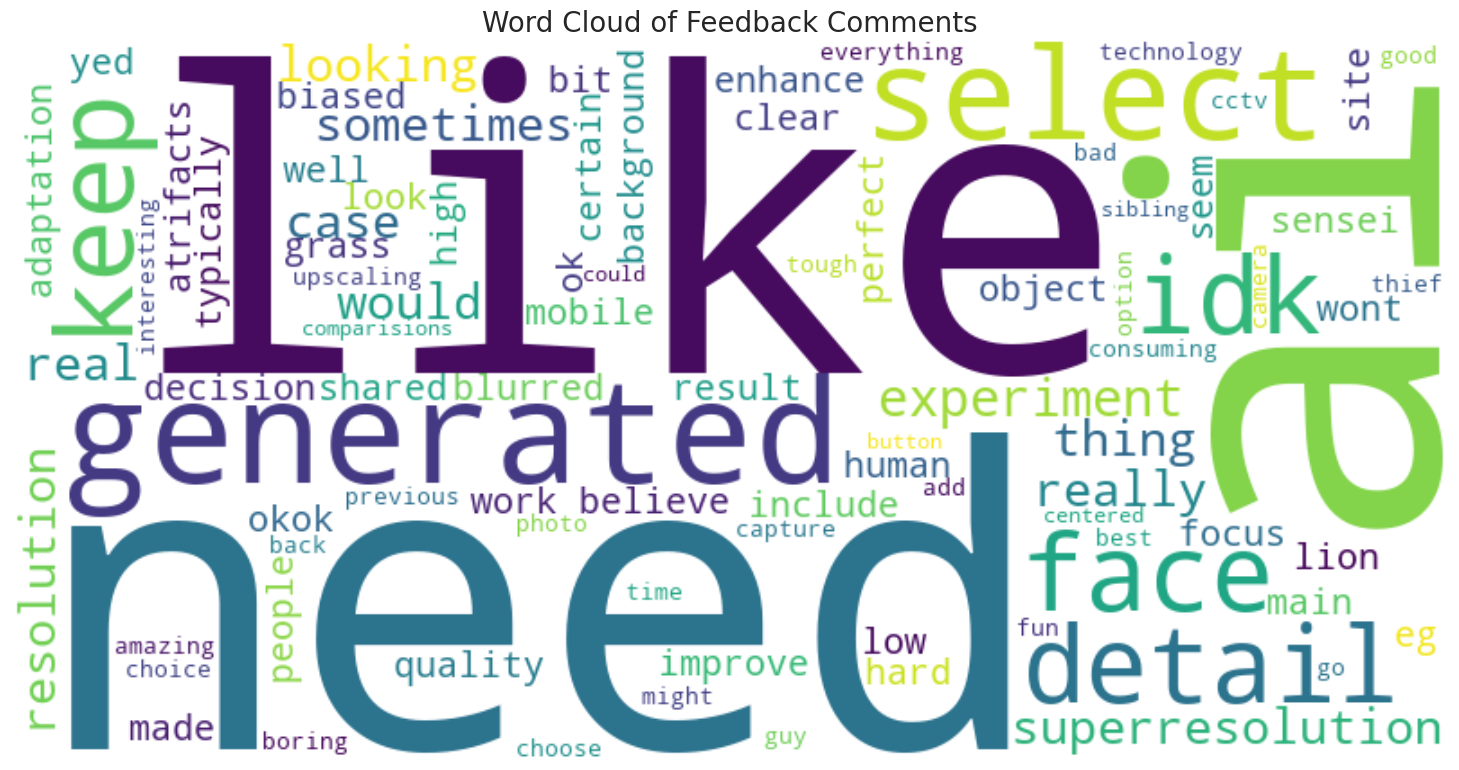

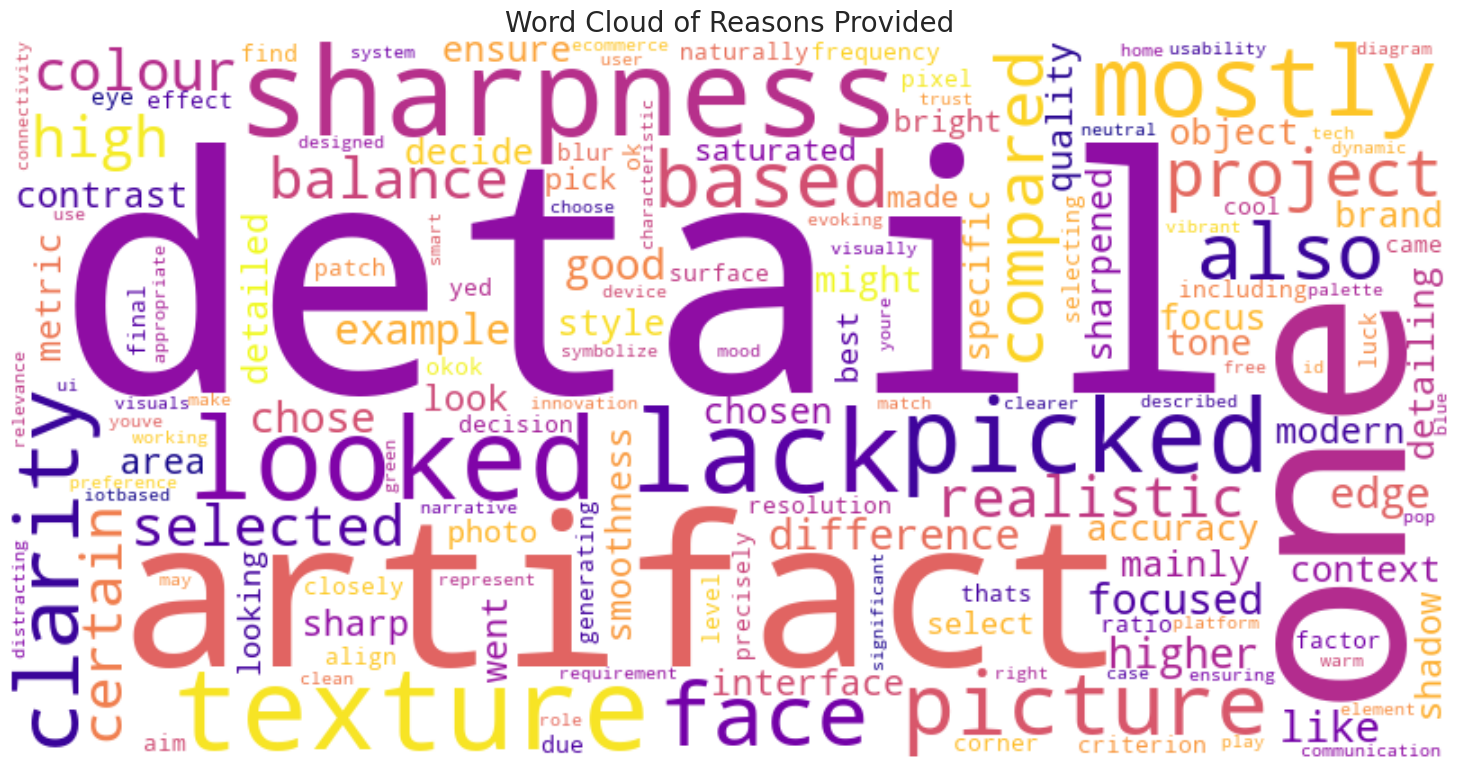

User Feedback Analysis: Key terms include "sharp," "clear," "natural," and "detailed"
Decision Factors: Users prioritized visual naturalness over pixel-perfect accuracy
Key Findings & Implications
Critical Insights:
- ResShift's Robustness: Consistent performance across both objective metrics and subjective evaluations confirms its suitability for real-world applications
- Metric Limitations: BSRGAN's poor subjective performance despite competitive PSNR/SSIM highlights the inadequacy of traditional metrics for perceptual quality
- Perceptual Alignment: LPIPS and CLIPIQA showed better correlation with human preferences than PSNR/SSIM
- Content Dependency: Optimal model selection varies significantly with image content type
- Statistical Validation: Bradley-Terry model and Chi-Square tests (p < 0.001) confirm the reliability of subjective preferences
Future Directions
This research bridges the gap between quantitative metrics and perceptual quality, contributing to SR model development that excels in real-world applications. Future work will focus on:
- Expand Datasets: Include diverse demographic groups and image types to enhance generalizability
- Failure Case Analysis: Detailed investigation of problematic outputs to identify improvement areas
- Hybrid Metrics Development: Integrate objective and subjective components for holistic SR evaluation
- Adaptive Evaluation: Content-specific metrics that account for varying perceptual requirements
Conference Poster
SCIA 2025 Poster: A comprehensive visual summary of our research findings, experimental setup, and key insights. The poster provides an overview of both objective metrics and subjective evaluation results.
